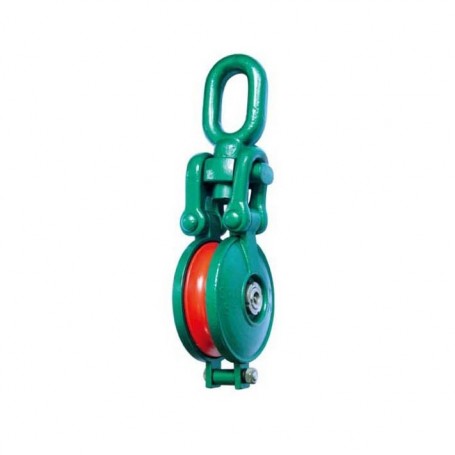

An oval eye snatch block is a type of pulley used in rigging and lifting operations. It is designed to facilitate the redirection of a rope or cable, allowing for changes in direction or increased mechanical advantage.
The term "oval eye" refers to the shape of the opening in the snatch block. Instead of a traditional round eye, the oval eye has an elongated shape, resembling an oval or an egg. This design allows for easier insertion and removal of the rope or cable, as well as better alignment and reduced wear on the line.
A snatch block typically consists of a grooved wheel or sheave enclosed within a frame. The frame is designed to accommodate the rope or cable, and the sheave rotates on a pin or axle. The oval eye snatch block has the additional feature of the elongated opening, which provides the benefits mentioned above.
When using an oval eye snatch block, the rope or cable is threaded through the opening and around the sheave. This allows the block to change the direction of the line, redirecting it as needed. By using a snatch block in combination with a winch or other pulling device, the mechanical advantage can be increased, making it easier to lift or move heavy loads.
It's important to choose a snatch block that is appropriate for the intended load and application. Factors such as the working load limit, the type of rope or cable being used, and the environmental conditions should be taken into consideration. Always follow the manufacturer's instructions and guidelines for safe and proper use of the snatch block.
Here are some common uses of an oval eye snatch block:
Redirecting the direction of a rope or cable in rigging and lifting operations.
Increasing mechanical advantage by using a snatch block in combination with a winch or pulling device.
Facilitating changes in pulling direction when navigating obstacles or tight spaces.
Assisting in the recovery of vehicles or equipment by providing a point of attachment for a rope or cable.
Allowing for the lifting or moving of heavy loads with reduced effort.
Supporting tensioning operations in various applications, such as construction, forestry, and maritime industries.
Enabling efficient hoisting and lowering of loads in scenarios like marine and off-road vehicle recovery.
Aiding in the operation of cranes, winches, and other lifting equipment.
